Example of transferring organic solvent

The case where a radial vane pump solved the problem of remaining liquid when pulling liquid out of a tank.

濃硫酸ピッチ ポリマー溶液 有機溶剤 溶剤/IPA メッキ液(ダイヤモンドスラリー)

[Model used] : Radial vane pump, Model R-type
[Liquid name] : organic solvent


Efficient transfer of organic solvents between tanks


In the process of transferring organic solvents, the existing pumps had a problem that when the amount of liquid in the tank became low, the suction power decreased due to air biting, and the liquid remained in the tank.
In order to increase the recovery rate as much as possible, the liquid that accumulated at the bottom of the tank was manually collected, but we wanted to improve this process because it was time-consuming and labor intensive.

Points of improvement

Radial vane pump Model R-type was introduced.
This pump has a high suction force, and even when the amount of liquid in the tank is low and air bites occur, it does not easily lose capacity, allowing the liquid to be drawn down to the bottom of the tank.
This eliminates the necessity of collecting the residual liquid manually, which greatly improves production efficiency.

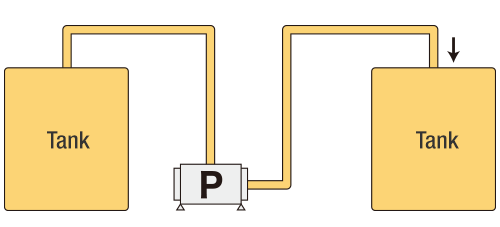

production flow

Product used


Radial vane pump, Model R-type

No residual liquid to the very bottom of the drum!
